TENBULL P4.81 P3.91 P2.064 P1.875 stadium perimeter display rental waterproof led display screen
Quick detail
1.Pixel pitch:4.81mm
2.IC:FM6353
3.Color:full color 1R1G1B
4.Module size:250*250mm
5.Display Mode:800*600/1024*768
Product detail
1.High quality LED chip, low brightness attenuation, good wavelength stability, large angle, good flatness, strong antistatic.
2.The box design is standardized, better suitable for the requirements of different pixel display, easy to install, the box is thinner and better saves transportation costs.
3.Using mask design, better visual effect, non-reflective surface, large viewing angle, good viewing effect, good display effect.
4.It has the characteristics of insulation, moisture-proof, anti leakage, shockproof, anti-corrosion, anti-aging, corona resistance, high temperature resistance, etc.
5.Easy installation; The whole screen splicing is seamless, can be quickly installed and removed, and different sizes of cabinets can be mixed and matched.
6.Use advanced blanking solutions: completely eliminate ghosting, dark and light phenomena.
7.It can be spliced seamlessly and quickly, and it is easy to repair and maintain, because the locking structure makes the splicing operation simple and convenient and tool-free.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| | Product model | P4.81-13S |
| | Module size | 250mm*250mm |
| | Pixel pitch | 4.81mm |
| | Pixel density | 43264dot/m2 |
| | Pixel configuration | 1R1G1B |
| | LED type | SMD1921 |
| | IC | FM6353 |
| | Pixel resolution | 52dots(W)*52dots(H) |
| | Max Power consumpion | 60W |
| | Module weight | 1.2kg |
| | Drive type | Constant drive |
| | Scan mode | 1/13 scan |
| LED cabinet | cabinet size | 500mm*1000mm |
| | Module quantity | 8pcs |
| | Power supply | 5V/60A |
| | Pixel per cabinet | 104*208 |
| | Brightness of white balance | ≥5000cd/m2 |
| | Best viewing distance | 4M～50M |
| | The best perspective | 160°(W) 120°(H) |
| | Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ |
| | Opration humidity | 10%-95% |
| | Thickness | 85mm |
power | Working voltage | AC220V±10% |
| | Average Power | 400W/S |
| | Max.Power consumption | ≤800W/S |
| | Current | ≤20mA(single LED) |
Control syste | CPU | Pentium4 or above |
| | Operation system | WIN98/2000/NT/XP |
| | Control method | Synchronization |
Main technical parameter | Driving device | Constant currentdriver IC |
| | Refresh frequency | ≥3840HZ |
| | Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| | MTBF | ≥9000hours |
| | Power switch | Automatic switch |
| | Display Mode | 800*600/1024*768 |

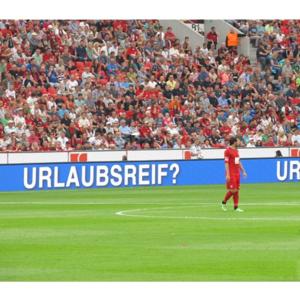

Product photo
FAQ
Q1.How to deal with the faulty?
A:Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%; Secondly, during the guarantee period, we will send a new module with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.What kind of display do we provide?
A:We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
Q4.What pixels should I choose on my display?
We will design a suitable pixel pitch for customers according to viewing distance, display size, desired effect and customer's budget.
